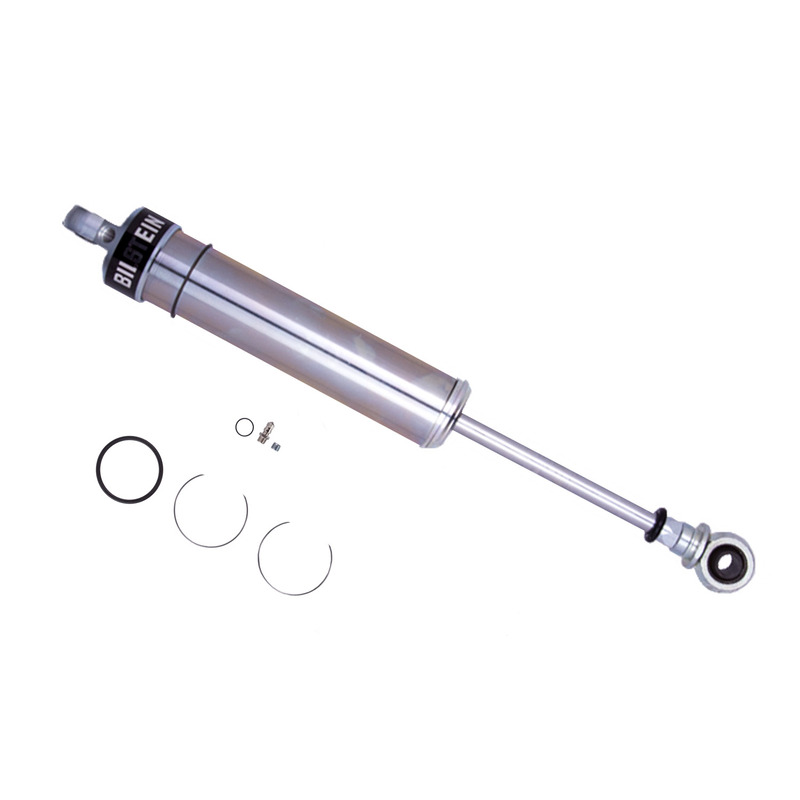

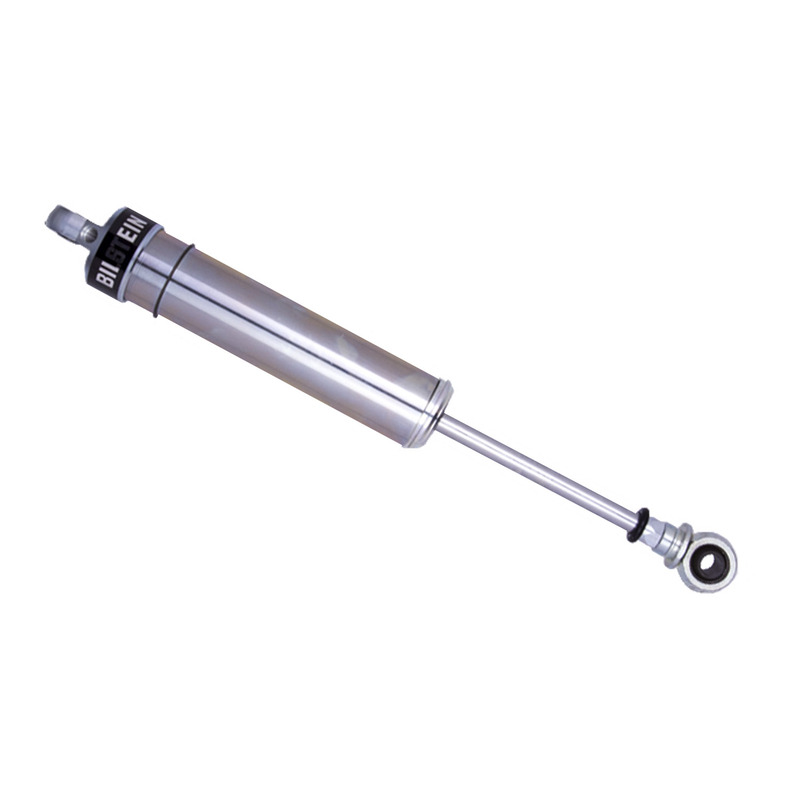

Suspension Shock Absorber 33-260051

        Suspension Shock Absorber 33-260051

        Part Number:33-260051
        Bilstein
        Bilstein SNS2 Series shock absorbers feature a steel, smooth body design utilizing the 46mm monotube technology (piston and piston band sold separately) designed for motorsports applications. These shock absorbers feature a steel body cap and a Schrader valve or fill plug. They are upgradeable to adjustable shafts and can be converted to a coilover (kit sold separately). SNS2 Series shock absorbers are ideal for racers whose sanctioning rules require an all steel construction with rebuild capability.
        • Plated steel body for durability and superior heat dissipation
        • 46mm piston design for maximum damping control
        • Standard 1/2” graphite heims
        Retail price
        • $199.00
        Features
          • SKU
            33-260051
          • Brand
            Bilstein
          • Adjustable Damping
            No
          • Body Design
            Smooth Body
          • Body Inside Diameter
            46.0 mm
          • Body Material
            Steel
          • Coilover Type
            Non-Coilover
          • Collapsed Length
            304.8 mm
          • Collapsed Length
            12.0 in.
          • Extended Length
            452.3 mm
          • Extended Length
            17.81 in.
          • Finish
            Zinc Plated
          • Includes Boot
            No
          • Includes Spring Seat
            No
          • Internal Design
            Monotube
          • Lower Mount Type
            12.7 mm Heim
          • Piston Type
            Linear
          • Series
            SNS2 Series
          • Shock Cap Type
            Screw Top
          • Upper Mount Type
            12.7 mm Heim
          • Valve Type
            Linear Dry Kit (no valving)
