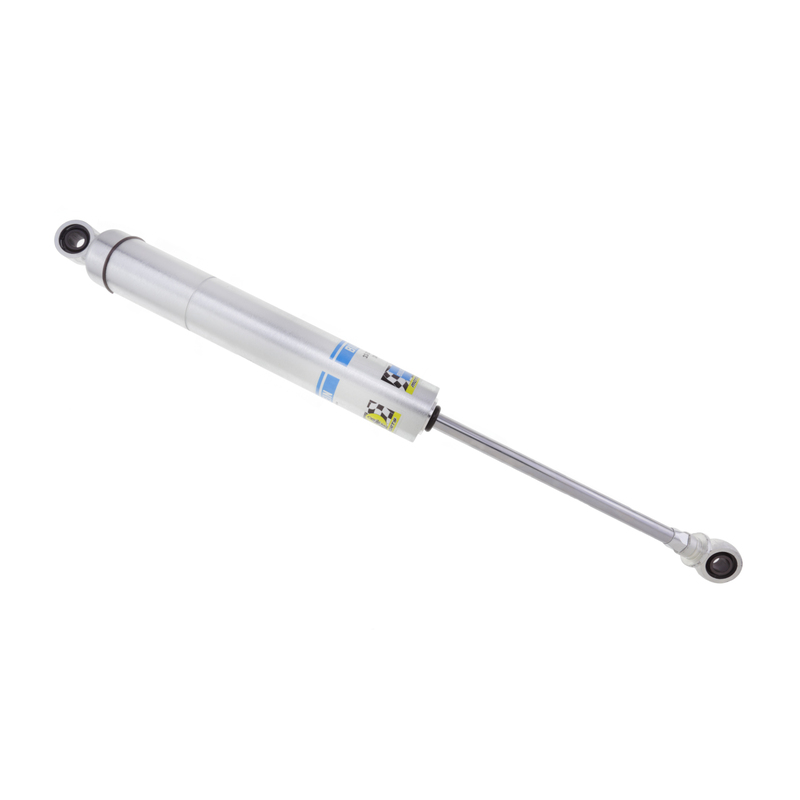

Suspension Shock Absorber 33-239508

        Suspension Shock Absorber 33-239508

        Part Number:33-239508
        Bilstein
        Bilstein SZ Series shock absorbers feature a 46mm piston, steel construction and smooth body designed for motorsports applications. These shock absorbers are available in a variety of lengths and standard digressive valve settings that utilize proprietary spring steel valve discs and can be converted to a coilover design (kit sold separately). They are also available as dry kits (partially assembled wtih no valving or gas) that are geared towards giving tuners the versatility to build to their unique needs. SZ Series shock absorbers are ideal for racers whose sanctioning rules do not allow or require rebuild capability.
        • Plated steel body for durability and superior heat dissipation
        • 46mm piston design for maximum damping control
        • Standard 1/2” graphite heims
        Retail price
        • $170.50
        Features
          • SKU
            33-239508
          • Brand
            Bilstein
          • Adjustable Damping
            No
          • Body Design
            Smooth Body
          • Body Inside Diameter
            46.0 mm
          • Body Material
            Steel
          • Coilover Type
            Non-Coilover
          • Collapsed Length
            378.0 mm
          • Collapsed Length
            14.88 in.
          • Compression at 0.26 m/s
            1,335.0 N
          • Extended Length
            597.5 mm
          • Extended Length
            23.52 in.
          • Finish
            Zinc Plated
          • Includes Boot
            No
          • Includes Spring Seat
            No
          • Internal Design
            Monotube
          • Lower Mount Type
            12.7 mm Heim
          • Piston Style
            Digressive
          • Rebound @0.26m/s
            260
          • Series
            SZ Series
          • Upper Mount Type
            12.7 mm Heim
          • Valving Identifier
            2080
