Suspension Shock Absorber 33-120010

        Suspension Shock Absorber 33-120010

        Part Number:33-120010
        Bilstein

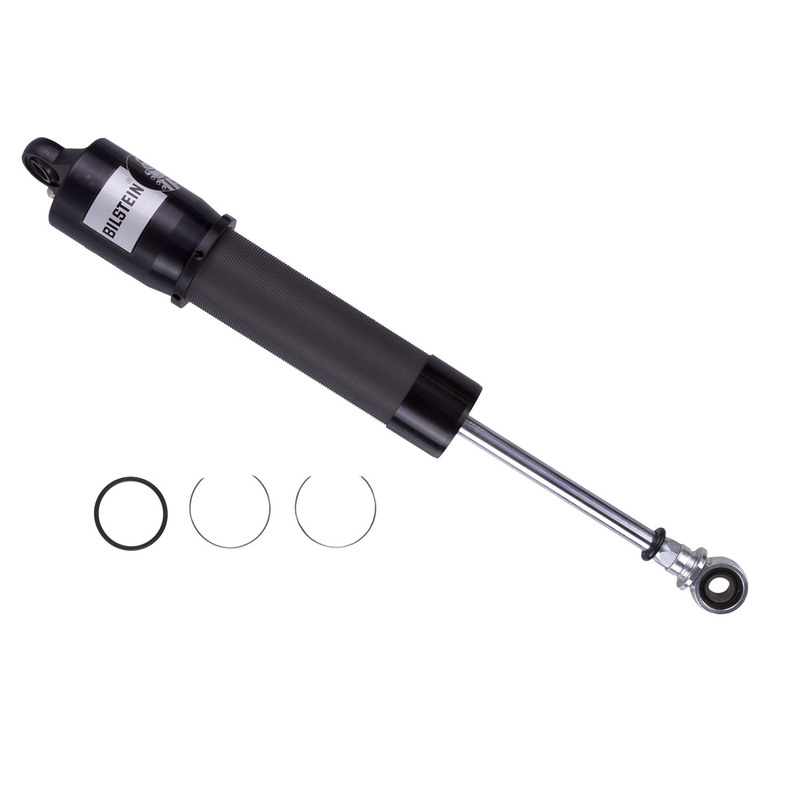

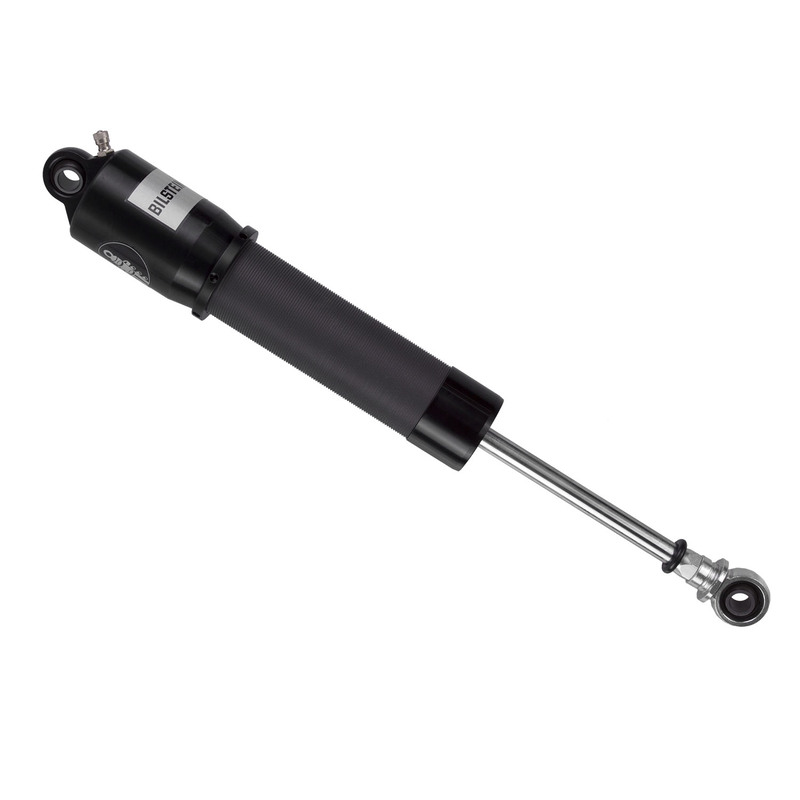

        Bilstein XVA Series shock absorbers features aluminum threaded body construction designed for motorsports applications. The large volume dual zone nitrogen bulb, with optional base valve (sold separately), allows for lower gas pressure for increased grip. These shock absorbers are available in non-, single and double adjustable configurations for precise on-vehicle tuning options. Pistons, piston bands and heims are sold separately to allow the greatest flexibility in upgrade combinations. XVA Series shock absorbers are ideal for racers looking for an aluminum, rebuildable design with multiple upgrade options and superior performance.
        • 46mm extruded aluminum threaded body improves durability and heat dissipation
        • Dual-zone gas bulb decreases gas pressure while increasing grip levels
        • Optimized floating piston improves driver feel and response
        Retail price
        • $375.00
        Features
          • SKU
            33-120010
          • Brand
            Bilstein
          • Adjustable Damping
            No
          • Body Design
            Threaded Body
          • Body Inside Diameter
            46.0 mm
          • Body Material
            Aluminum
          • Coilover Type
            Coilover
          • Collapsed Length
            325.5 mm
          • Collapsed Length
            12.81 in.
          • Color
            Natural
          • Extended Length
            471.5 mm
          • Extended Length
            18.56 in.
          • Finish
            Anodized
          • Includes Boot
            No
          • Includes Spring Seat
            No
          • Internal Design
            Monotube
          • Lower Mount Type
            12.7 mm Heim
          • Piston Type
            Linear
          • Series
            XVA Series
          • Shock Cap Type
            Large Bulb Screw Top
          • Upper Mount Type
            12.7 mm Heim
          • Valve Type
            Linear Dry Kit (no valving)
