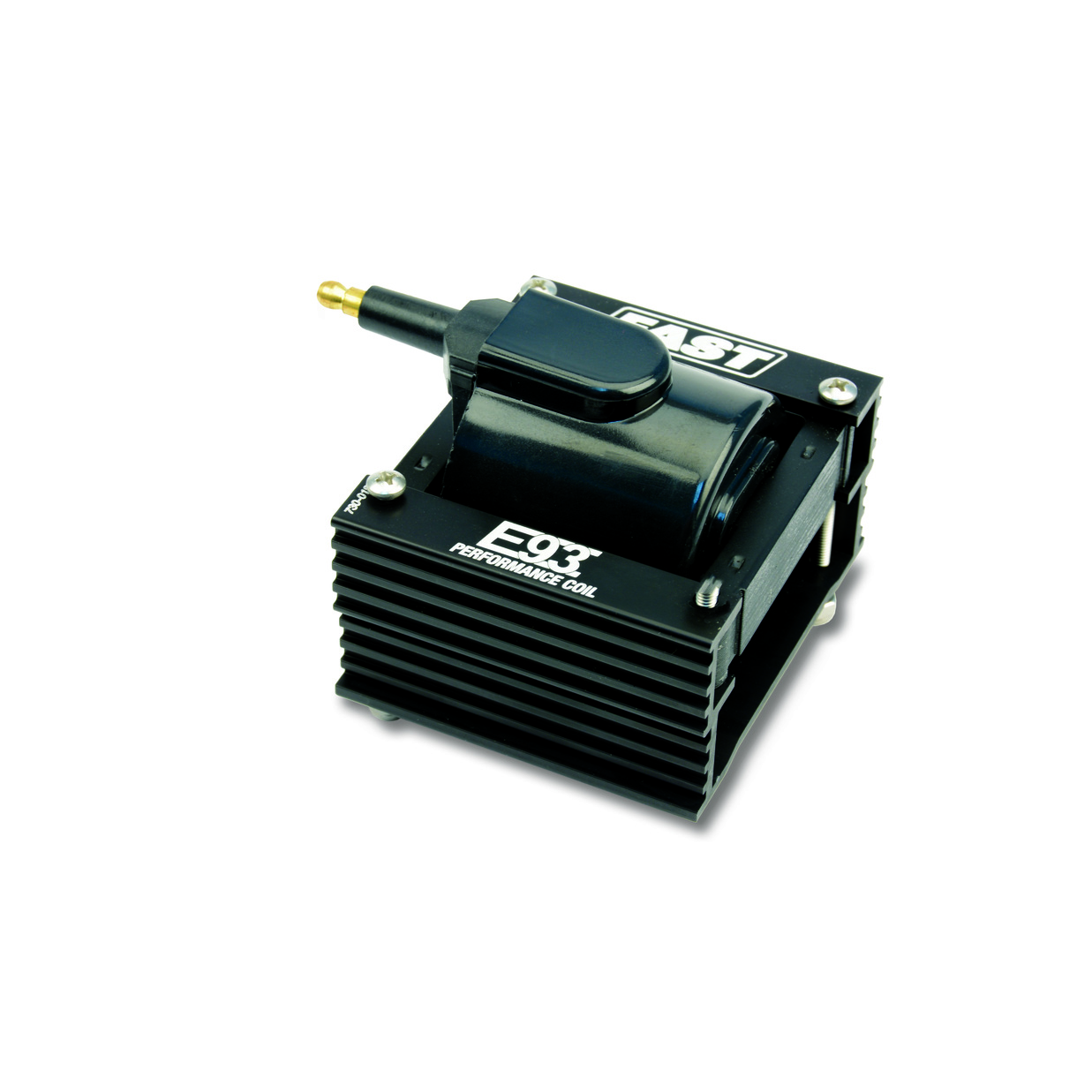

        Ignition Coil - 730-0192

        Part Number:DXKP-730-0192
        FAST
        When it comes to high compression and cylinder pressures with redline revving RPM, the E93 Coil is the best choice. This coil was engineered from the inside out to handle the needs of race engines. Inside the low profile coil housing is heavy gauge wiring for use on both sets of windings resulting in a highly effective turns ratio of 60:1. The internals are encapsulated in urethane for protection against extreme vibration and abuse from racing environments. The secondary tower is also lengthened to aid in spark isolation and terminal connection.
        Retail price
        • $84.95
        Overview
        When it comes to high compression and cylinder pressures with redline revving RPM, the E93 Coil is the best choice. This coil was engineered from the inside out to handle the needs of race engines. Inside the low profile coil housing is heavy gauge wiring for use on both sets of windings resulting in a highly effective turns ratio of 60:1. The internals are encapsulated in urethane for protection against extreme vibration and abuse from racing environments. The secondary tower is also lengthened to aid in spark isolation and terminal connection.
        Features
          • SKU
            DXKP-730-0192
          • Brand
            FAST
          • Ballast Resistor Included
            No
          • Coil Shape
            Square
          • Coil Type
            E-Core
          • Coil Wire Attachment
            Male/HEI
          • Coil Wire Included
            No
          • Coil Wire Terminal Quantity
            1
          • Color
            Black
          • Feature Note
            Meets or Exceeds OEM Specs
          • Height
            3.25 in.
          • Internal Construction
            Epoxy
          • Leakage Inductance
            0.14 mH
          • Length
            4.25 in.
          • Maximum Voltage
            50,000V
          • Mount Type
            Integral
          • Oil Filled
            No
          • Peak Current
            615 mA
          • Primary Inductance
            1.9 mH
          • Primary Resistance
            0.20 ohms
          • Prop 65 - Short Label
            WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
          • Secondary Inductance
            6.8 H
          • Secondary Resistance
            820 ohms
          • Spark Duration
            245 uS
          • Terminal Quantity
            2
          • Turns Ratio
            60:1
          • Weight
            2.13 lbs.
          • Width
            3.5 in.
