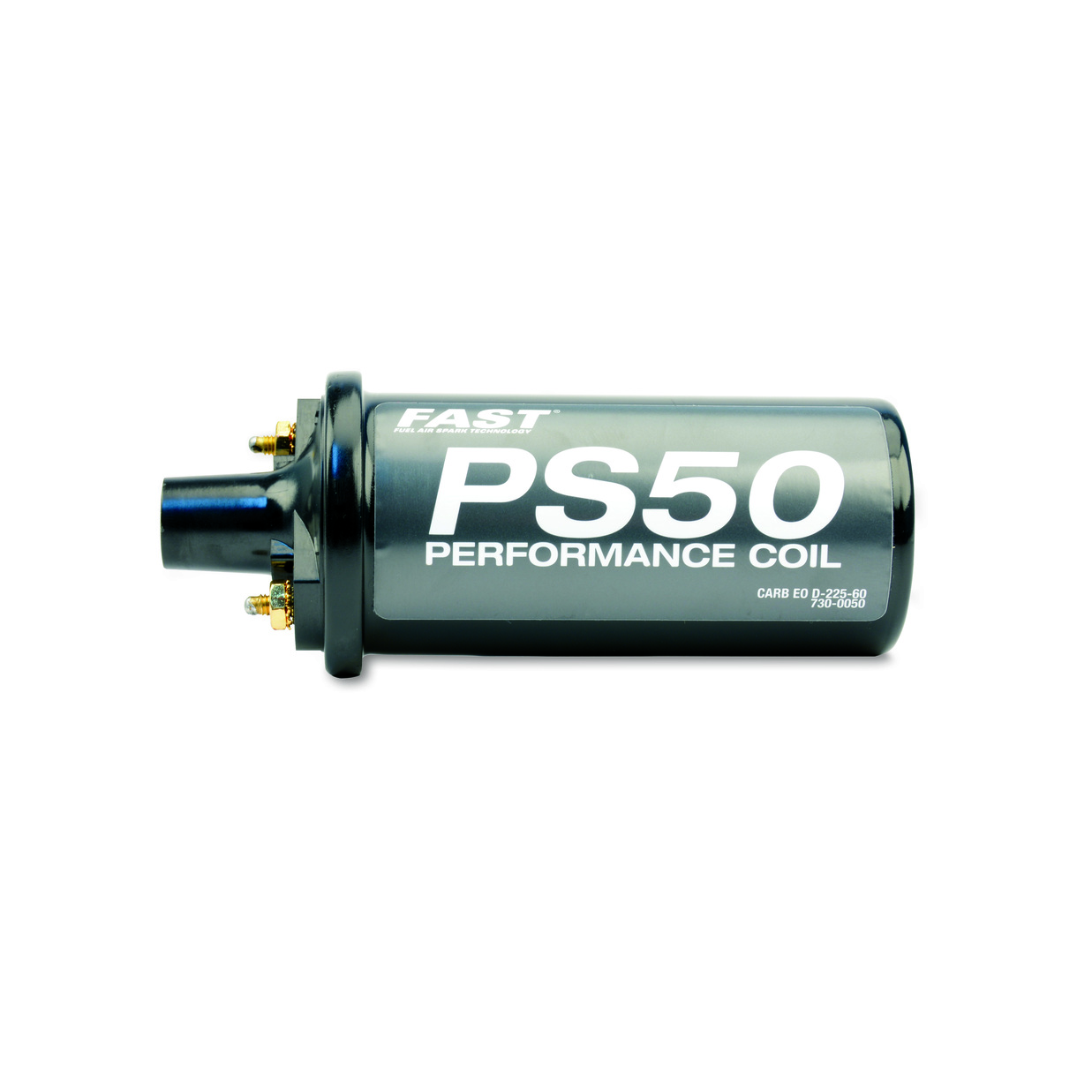

        Ignition Coil - 730-0050

        Part Number:DXKP-730-0050
        FAST
        The PS50 and PS60 Coils are ideal for street cars packing a little more power and are running a FAST 6I Ignition, XR700 or 3000 Breakerless Conversion Ssystem or the E6 CD Ignition Controls. These coils feature lower resistance windings to ensure the most voltage possible is brought into the coil with an optimized turns ratio for the best output. This combination is ideal for engines that endure higher RPM and performance such as circle track, road racing and off-road racing. The coils are filled with oil for optimum cooling are housed in a sturdy steel canister that can handle the abuse of racing. They?re topped off with an alkyd molded top and brass, screw-type terminals.
        Retail price
        • $65.95
        Overview
        The PS50 and PS60 Coils are ideal for street cars packing a little more power and are running a FAST 6I Ignition, XR700 or 3000 Breakerless Conversion Ssystem or the E6 CD Ignition Controls. These coils feature lower resistance windings to ensure the most voltage possible is brought into the coil with an optimized turns ratio for the best output. This combination is ideal for engines that endure higher RPM and performance such as circle track, road racing and off-road racing. The coils are filled with oil for optimum cooling are housed in a sturdy steel canister that can handle the abuse of racing. They?re topped off with an alkyd molded top and brass, screw-type terminals.
        Features
          • SKU
            DXKP-730-0050
          • Brand
            FAST
          • Ballast Resistor Included
            No
          • Coil Shape
            Round
          • Coil Type
            Canister
          • Coil Wire Attachment
            Female/Socket
          • Coil Wire Included
            No
          • Coil Wire Terminal Quantity
            1
          • Color
            Black
          • Diameter
            2.125 in.
          • Feature Note
            Meets or Exceeds OEM Specs
          • Height
            5.75 in.
          • Internal Construction
            Oil-Filled
          • Leakage Inductance
            0.5 mH
          • Maximum Voltage
            47,000V
          • Mount Type
            Bracket
          • Mounting Hardware
            Utilizes OEM Hardware
          • Mounting Position
            Upright
          • Oil Filled
            Yes
          • Peak Current
            160 mA
          • Primary Inductance
            5.3 mH
          • Primary Resistance
            0.40 ohms
          • Prop 65 - Short Label
            WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
          • Secondary Inductance
            15.0 H
          • Secondary Resistance
            3.8K ohms
          • Spark Duration
            385 uS
          • Terminal Quantity
            2
          • Turns Ratio
            54:1
          • Weight
            1.75 lbs.
