        Ignition Coil - 308250

        Part Number:DXKP-308250
        FAST

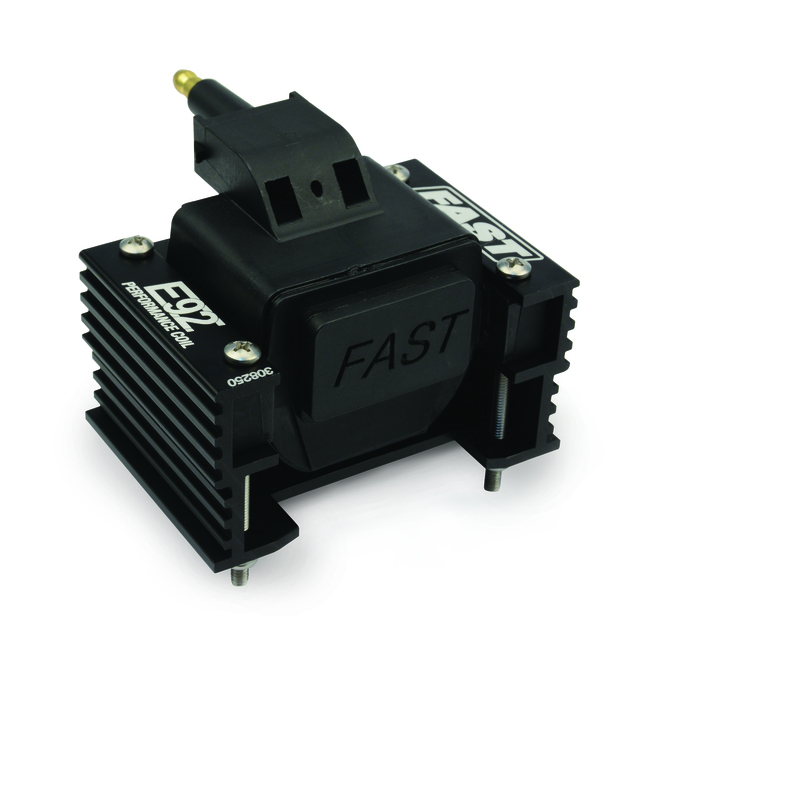

        The E92 Coil was designed for high performance street engines running an E6-series Ignition Control. The efficient E-core construction provides a secure housing that can handle the rigors of street and performance use while producing a high output spark. The extruded metal housing provides a durable mount and acts as an effective heat sink as well.
        Retail price
        • $106.95
        Overview
        The E92 Coil was designed for high performance street engines running an E6-series Ignition Control. The efficient E-core construction provides a secure housing that can handle the rigors of street and performance use while producing a high output spark. The extruded metal housing provides a durable mount and acts as an effective heat sink as well.
        Features
          • SKU
            DXKP-308250
          • Brand
            FAST
          • Ballast Resistor Included
            No
          • Coil Shape
            Square
          • Coil Type
            E-Core
          • Coil Wire Attachment
            Male/HEI
          • Coil Wire Included
            No
          • Coil Wire Terminal Quantity
            1
          • Color
            Black
          • Feature Note
            Meets or Exceeds OEM Specs
          • Height
            3.0 in.
          • Internal Construction
            Epoxy
          • Leakage Inductance
            0.14 mH
          • Length
            3.75 in.
          • Maximum Voltage
            48,500V
          • Mount Type
            Integral
          • Oil Filled
            No
          • Peak Current
            510 mA
          • Primary Inductance
            1.7 mH
          • Primary Resistance
            0.23 ohms
          • Prop 65 - Short Label
            WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
          • Secondary Inductance
            5.5 H
          • Secondary Resistance
            920 ohms
          • Spark Duration
            245 uS
          • Terminal Quantity
            2
          • Turns Ratio
            60:1
          • Weight
            1.25 lbs.
          • Width
            2.5 in.
