        Transmission Clutch Kit - ZX2-HDSS

        Part Number:BHXS-ZX2-HDSS
        Advanced Clutch

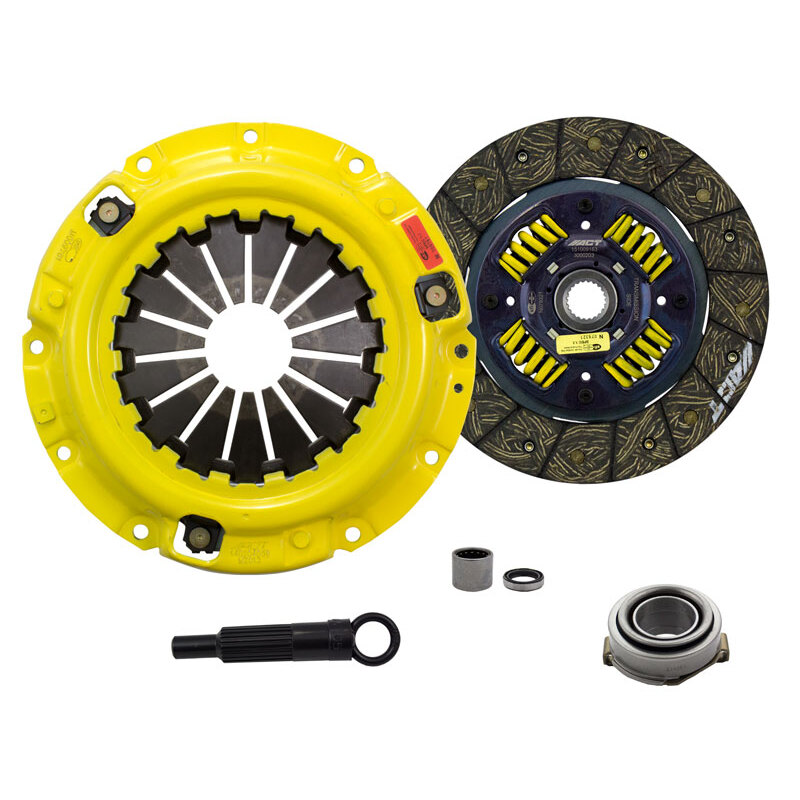

        ZX2-HDSS kit features ACT's most popular Heavy Duty pressure plate and most popular street disc. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Performance Street discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates, with increased strength and reliability.
        • "Excellence in Performance", backed by the best one-year warranty in the industry!
        Retail price
        • $593.08
        Overview
        ZX2-HDSS kit features ACT's most popular Heavy Duty pressure plate and most popular street disc. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Performance Street discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates, with increased strength and reliability.
        • "Excellence in Performance", backed by the best one-year warranty in the industry!
        Features
          • SKU
            BHXS-ZX2-HDSS
          • Brand
            Advanced Clutch
          • Alignment Tool Included
            Yes
          • Clutch Disc Diameter
            224 mm
          • Clutch Disc Diameter
            8.80 in.
          • Disc Material
            Organic
          • Input Shaft Diameter
            0.9375 in.
          • Input Spline Quantity
            22
          • Pressure Plate Series
            Heavy Duty
          • Product Weight
            13.9 lbs.
          • Prop 65 - Required to list in California with Warning
            Yes
          • Prop 65 - Short Label
            WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
          • Release Bearing Included
            Yes
          • Torque Capacity
            270 ft/lbs.
          • Torque Capacity Percentage Over Stock
            30%
        Fitment
        Make Model Submodel Year
        Mazda RX-7 Base 1986
        Mazda RX-7 Base 1987
        Mazda RX-7 Base 1991
        Mazda RX-7 Base 2+2 1987
        Mazda RX-7 Convertible 1988
        Mazda RX-7 Convertible 1989
        Mazda RX-7 Convertible 1990
        Mazda RX-7 Convertible 1991
        Mazda RX-7 GS 1983
        Mazda RX-7 GS 1984
        Mazda RX-7 GS 1985
        Mazda RX-7 GSL 1983
        Mazda RX-7 GSL 1984
        Mazda RX-7 GSL 1985
        Mazda RX-7 GSL-SE 1984
        Mazda RX-7 GSL-SE 1985
        Mazda RX-7 GTU 1988
        Mazda RX-7 GTU 1989
        Mazda RX-7 GTU 1990
        Mazda RX-7 GTUs 1989
        Mazda RX-7 GTUs 1990
        Mazda RX-7 GXL 1986
        Mazda RX-7 GXL 1987
        Mazda RX-7 GXL 1988
        Mazda RX-7 GXL 1989
        Mazda RX-7 GXL 1990
        Mazda RX-7 GXL 2+2 1987
        Mazda RX-7 GXL 2+2 1988
        Mazda RX-7 GXL 2+2 1989
        Mazda RX-7 GXL 2+2 1990
        Mazda RX-7 LX 1987
        Mazda RX-7 LX 2+2 1987
        Mazda RX-7 Limited Edition 1983
        Mazda RX-7 S 1983
        Mazda RX-7 S 1984
        Mazda RX-7 S 1985
        Mazda RX-7 SE 1988
        Mazda RX-7 SE 2+2 1988
        Mazda RX-7 Sport 1987
