        Transmission Clutch Kit - Z64-XXR6

        Part Number:BHXS-Z64-XXR6
        Advanced Clutch

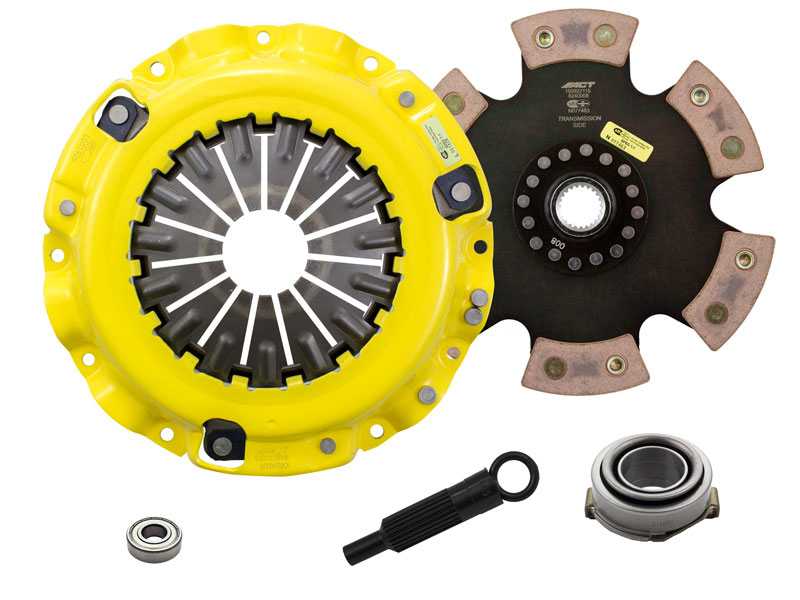

        Z64-XXR6 features a MaXX pressure plate for the serious enthusiast. ACT MaXX pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.
        • "Excellence in Performance", backed by the best one-year warranty in the industry!
        Retail price
        • $752.00
        Overview
        Z64-XXR6 features a MaXX pressure plate for the serious enthusiast. ACT MaXX pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.
        • "Excellence in Performance", backed by the best one-year warranty in the industry!
        Features
          • SKU
            BHXS-Z64-XXR6
          • Brand
            Advanced Clutch
          • Alignment Tool Included
            Yes
          • Clutch Disc Diameter
            240 mm
          • Clutch Disc Diameter
            9.40 in.
          • Disc Material
            Ceramic
          • Input Shaft Diameter
            1.0 in.
          • Input Spline Quantity
            23
          • Pressure Plate Series
            MaXX Xtreme
          • Product Weight
            15.3 lbs.
          • Prop 65 - Required to list in California with Warning
            Yes
          • Prop 65 - Short Label
            WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
          • Release Bearing Included
            Yes
          • Torque Capacity
            625 ft/lbs.
          • Torque Capacity Percentage Over Stock
            156%
        Fitment
        Make Model Submodel Year
        Ford Probe GT 1989
        Ford Probe GT 1990
        Ford Probe GT 1991
        Ford Probe GT 1992
        Mazda 626 GT 1990
        Mazda 626 GT 1991
        Mazda 626 Turbo 1988
        Mazda 626 Turbo 1989
        Mazda 929 Base 1988
        Mazda MX-6 GT 1988
        Mazda MX-6 GT 1989
        Mazda MX-6 GT 1990
        Mazda MX-6 GT 1991
        Mazda MX-6 GT 1992
        Mazda MX-6 GT 4WS 1989
        Mazda MX-6 GT 4WS 1990
