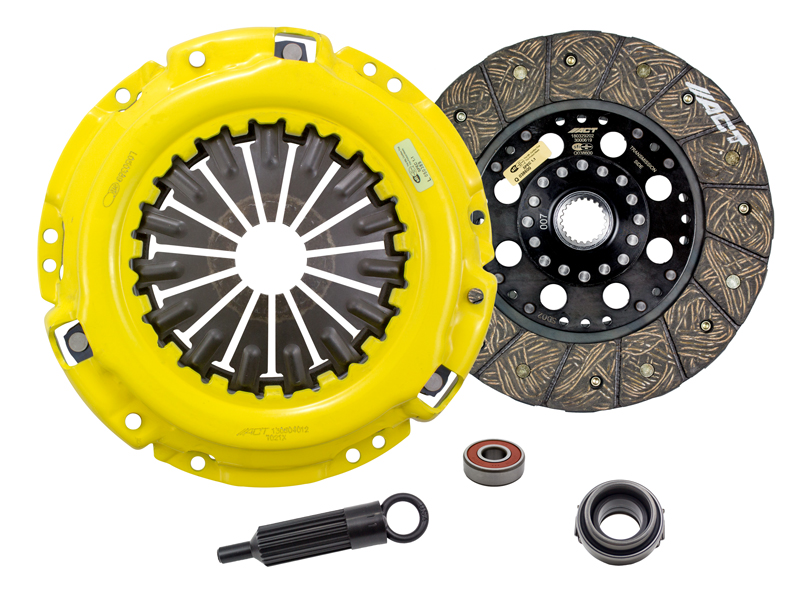

        Transmission Clutch Kit - TS5-XTSD

        Part Number:BHXS-TS5-XTSD
        Advanced Clutch
        TS5-XTSD kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. The ACT Performance street rigid-hub discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. The chrome-moly hub is heat-treated for strength and durability. Rivet design and materials are carefully selected for maximum strength. These discs are the minimum weight street disc for faster shifts. ACT's Street rigid-hub discs provide race-proven performance with street manageability.
        • "Excellence in Performance", backed by the best one-year warranty in the industry!
        Retail price
        • $753.00
        Overview
        TS5-XTSD kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. The ACT Performance street rigid-hub discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. The chrome-moly hub is heat-treated for strength and durability. Rivet design and materials are carefully selected for maximum strength. These discs are the minimum weight street disc for faster shifts. ACT's Street rigid-hub discs provide race-proven performance with street manageability.
        • "Excellence in Performance", backed by the best one-year warranty in the industry!
        Features
          • SKU
            BHXS-TS5-XTSD
          • Brand
            Advanced Clutch
          • Alignment Tool Included
            Yes
          • Clutch Disc Diameter
            236 mm
          • Clutch Disc Diameter
            9.30 in.
          • Disc Material
            Organic
          • Input Shaft Diameter
            1.125 in.
          • Input Spline Quantity
            21
          • Pressure Plate Series
            Xtreme
          • Product Weight
            17.0 lbs.
          • Prop 65 - Required to list in California with Warning
            Yes
          • Prop 65 - Short Label
            WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
          • Release Bearing Included
            Yes
          • Torque Capacity
            350 ft/lbs.
          • Torque Capacity Percentage Over Stock
            62%
        Fitment
        Make Model Submodel Year
        Lexus IS300 Base 2002
        Lexus IS300 Base 2003
        Lexus IS300 Base 2004
        Lexus IS300 Base 2005
