        Transmission Clutch Kit - T43-XTR4

        Part Number:BHXS-T43-XTR4
        Advanced Clutch

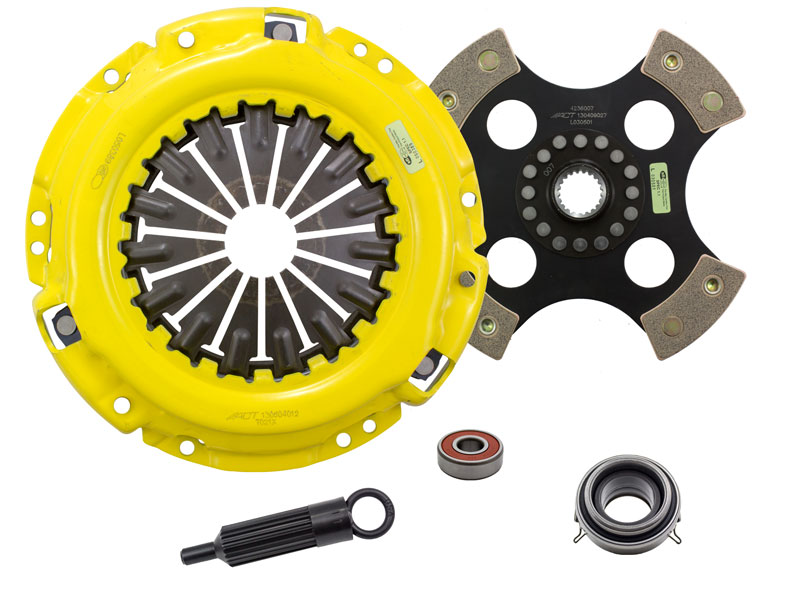

        T43-XTR4 kit features ACT's highly regarded Heavy Duty pressure plate and rigid 4 pad race disc delivering ultra-high torque capacity, aggressive engagement and increased toughness to withstand the demands of off-road racing. ACT's exclusive diaphragm design dramatically increases clamp load, reduces deflection and maximizes clutch life. All diaphragms endure a four-stage heat-treating process for unparalleled performance. ACT precision pressure plate cover stampings provide rigidity and consistency while precision machined pressure plate castings absorb heat. ACT's rigid center 4 pad race discs have a virtually indestructible rigid center and premium ceramic friction materials to hold power even under the most abusive conditions. Rigid design eliminates torsional damping for simplicity, reduced weight and quicker shifting.
        • "Excellence in Performance", backed by the best one-year warranty in the industry!
        Retail price
        • $704.00
        Overview
        T43-XTR4 kit features ACT's highly regarded Heavy Duty pressure plate and rigid 4 pad race disc delivering ultra-high torque capacity, aggressive engagement and increased toughness to withstand the demands of off-road racing. ACT's exclusive diaphragm design dramatically increases clamp load, reduces deflection and maximizes clutch life. All diaphragms endure a four-stage heat-treating process for unparalleled performance. ACT precision pressure plate cover stampings provide rigidity and consistency while precision machined pressure plate castings absorb heat. ACT's rigid center 4 pad race discs have a virtually indestructible rigid center and premium ceramic friction materials to hold power even under the most abusive conditions. Rigid design eliminates torsional damping for simplicity, reduced weight and quicker shifting.
        • "Excellence in Performance", backed by the best one-year warranty in the industry!
        Features
          • SKU
            BHXS-T43-XTR4
          • Brand
            Advanced Clutch
          • Alignment Tool Included
            Yes
          • Clutch Disc Diameter
            236 mm
          • Clutch Disc Diameter
            9.30 in.
          • Disc Material
            Ceramic
          • Input Shaft Diameter
            1.125 in.
          • Input Spline Quantity
            21
          • Pressure Plate Series
            Xtreme
          • Product Weight
            15.4 lbs.
          • Prop 65 - Required to list in California with Warning
            Yes
          • Prop 65 - Short Label
            WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
          • Release Bearing Included
            Yes
          • Torque Capacity
            450 ft/lbs.
          • Torque Capacity Percentage Over Stock
            107%
        Fitment
        Make Model Submodel Year
        Toyota 4Runner SR5 1987
        Toyota 4Runner SR5 1988
        Toyota 4Runner SR5 1993
        Toyota 4Runner SR5 1994
        Toyota 4Runner SR5 1995
        Toyota Pickup Base Turbo 1987
        Toyota Pickup DLX 1993
        Toyota Pickup DLX 1994
        Toyota Pickup DLX 1995
        Toyota Pickup RN02 1993
        Toyota Pickup SR5 Turbo 1987
        Toyota Pickup SR5 Turbo 1988
        Read More
