BD 6.7L Power Stroke Screamer Stage 1 Retrofit Turbo Kit Ford 2011-2016 - 1045824

        Transmission Clutch Kit - T1S-F08

        Part Number:BHXS-T1S-F08
        Advanced Clutch

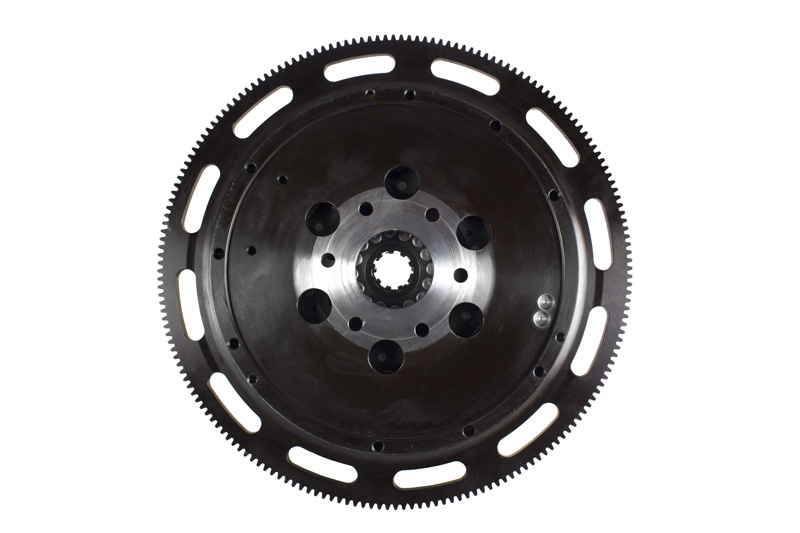

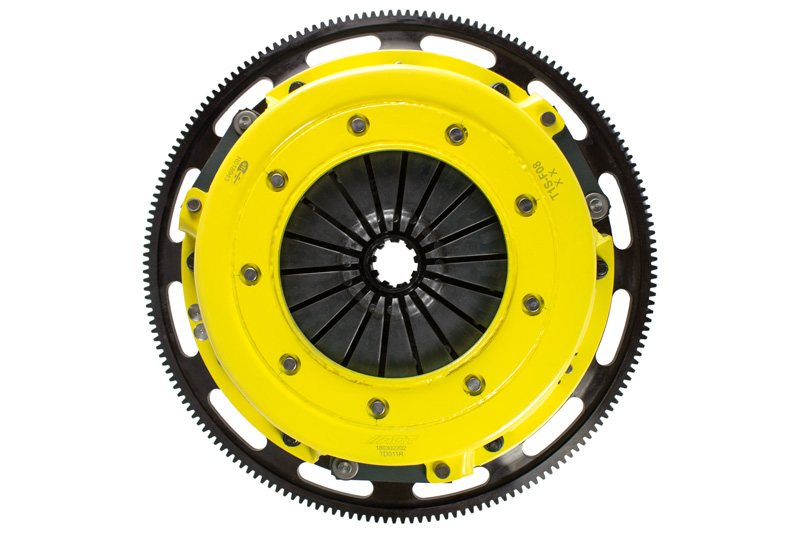

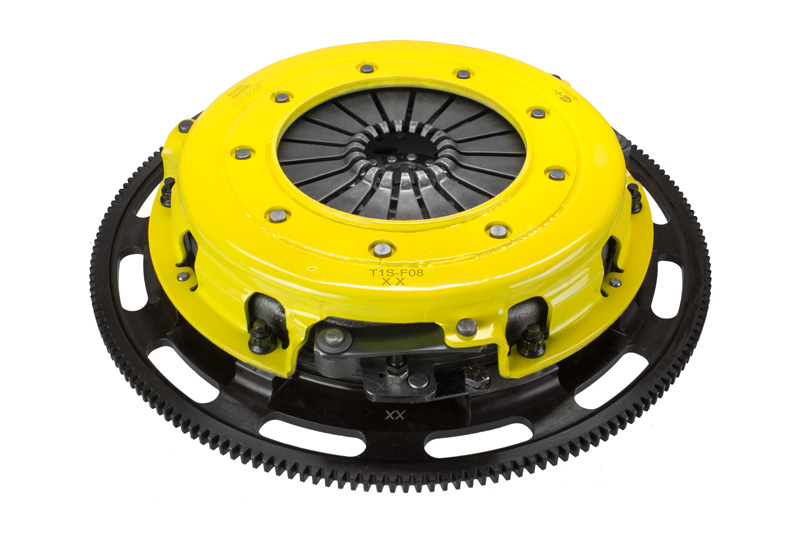

        T1S-F08 street, twin disc kit offers twice the number of disc surfaces for better wear, heat capacity and long life compared to single disc kits. These kits use a proprietary Positive Lift Floater System design, which results in quiet operation with no floater rattle and no posts to wear. ACT twin disc kits endure an exclusive four-stage, heat-treating process on all diaphragms. The ACT twin disc kits features the ability to adjust for disc wear and provides equal disengagement for discs. The Performance street rigid-hub discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. The chrome-moly hub is heat-treated for strength and durability. Rivet design and materials are carefully selected for maximum strength. All ACT twin disc kits include a CNC-machined and dynamically balanced flywheel to ensure trouble-free installation and operation. ACT twin disc kits include a pressure plate, two discs, a floater, flywheel and alignment tool. Some kits may include a pilot bearing and release bearing.
        • "Excellence in Performance", backed by the best one-year warranty in the industry!
        Retail price
        • $1,932.00
        Overview
        T1S-F08 street, twin disc kit offers twice the number of disc surfaces for better wear, heat capacity and long life compared to single disc kits. These kits use a proprietary Positive Lift Floater System design, which results in quiet operation with no floater rattle and no posts to wear. ACT twin disc kits endure an exclusive four-stage, heat-treating process on all diaphragms. The ACT twin disc kits features the ability to adjust for disc wear and provides equal disengagement for discs. The Performance street rigid-hub discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. The chrome-moly hub is heat-treated for strength and durability. Rivet design and materials are carefully selected for maximum strength. All ACT twin disc kits include a CNC-machined and dynamically balanced flywheel to ensure trouble-free installation and operation. ACT twin disc kits include a pressure plate, two discs, a floater, flywheel and alignment tool. Some kits may include a pilot bearing and release bearing.
        • "Excellence in Performance", backed by the best one-year warranty in the industry!
        Features
          • SKU
            BHXS-T1S-F08
          • Brand
            Advanced Clutch
          • Alignment Tool Included
            Yes
          • Clutch Disc Diameter
            10.5 in.
          • Clutch Disc Diameter
            267 mm
          • Disc Material
            Organic
          • Flywheel Included
            Yes
          • Input Shaft Diameter
            1.375 in.
          • Input Spline Quantity
            10
          • Product Weight
            48.3 lbs.
          • Prop 65 - Required to list in California with Warning
            Yes
          • Prop 65 - Short Label
            WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
          • SFI Certification Rating
            1.2
          • Torque Capacity
            891 ft/lbs.
          • Torque Capacity Percentage Over Stock
            53%
        Fitment
        Make Model Submodel Year
        Ford Fairlane 500 1966
        Ford Fairlane 500 1966
        Ford Fairlane 500 1967
        Ford Fairlane 500 1967
        Ford Fairlane 500 1968
        Ford Fairlane 500 1968
        Ford Fairlane 500 1969
        Ford Fairlane 500 1969
        Ford Fairlane 500XL 1966
        Ford Fairlane 500XL 1966
        Ford Fairlane 500XL 1967
        Ford Fairlane 500XL 1967
        Ford Fairlane Base 1966
        Ford Fairlane Base 1966
        Ford Fairlane Base 1967
        Ford Fairlane Base 1967
        Ford Fairlane Base 1968
        Ford Fairlane Base 1968
        Ford Fairlane Base 1969
        Ford Fairlane Base 1969
        Ford Galaxie Base 1963
        Ford Galaxie Base 1964
        Ford Galaxie Base 1965
        Ford Galaxie Base 1966
        Ford Galaxie Base 1967
        Ford Galaxie 500 Base 1965
        Ford Galaxie 500 Base 1966
        Ford Galaxie 500 Base 1967
        Ford Galaxie 500 Base 1968
        Ford Galaxie 500 XL 1965
        Ford Galaxie 500 XL 1966
        Ford Galaxie 500 XL 1967
        Ford Galaxie 500 XL 1968
        Ford Torino Base 1968
        Ford Torino GT 1968
