        Transmission Clutch Kit - SB8-HDR6

        Part Number:BHXS-SB8-HDR6
        Advanced Clutch

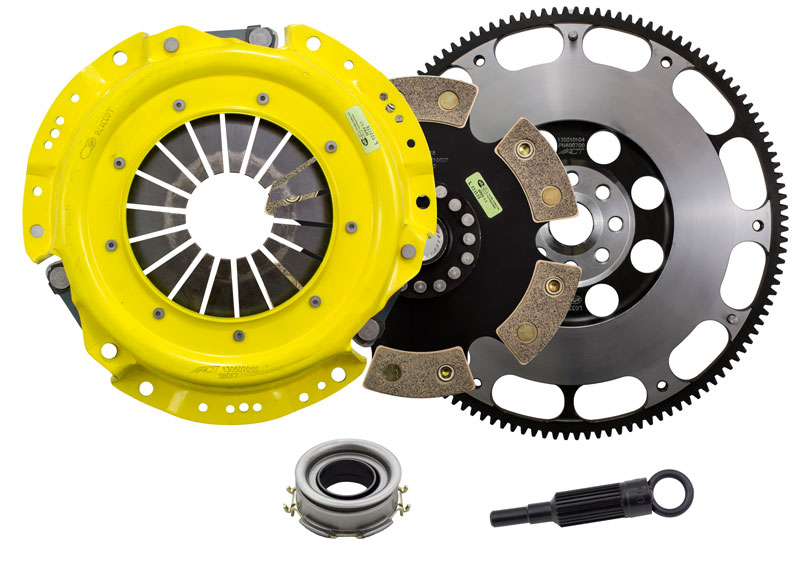

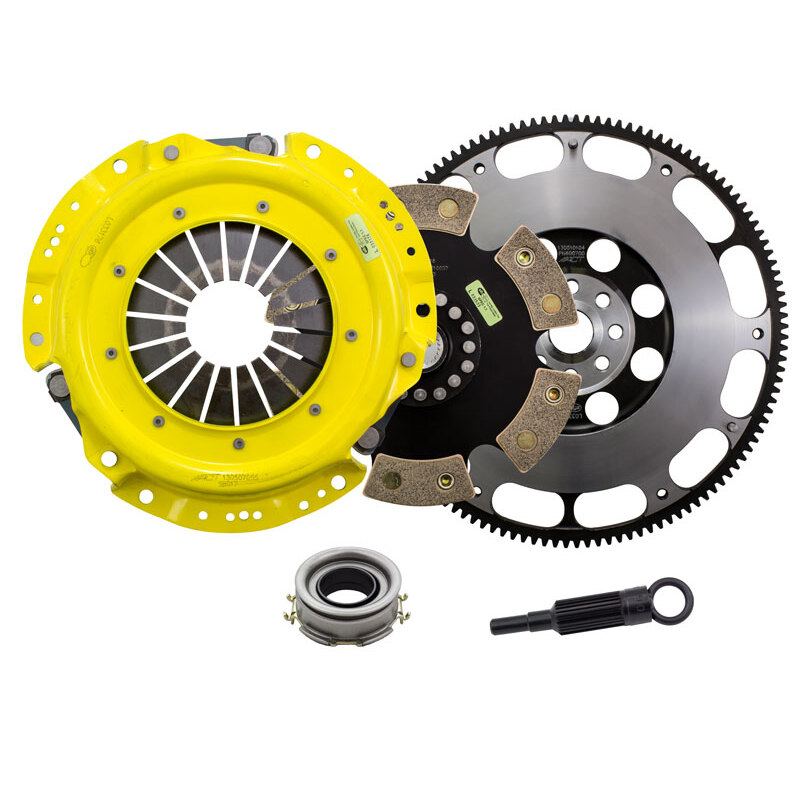

        SB8-HDR6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.
        • "Excellence in Performance", backed by the best one-year warranty in the industry!
        Retail price
        • $1,009.00
        Overview
        SB8-HDR6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.
        • "Excellence in Performance", backed by the best one-year warranty in the industry!
        Features
          • SKU
            BHXS-SB8-HDR6
          • Brand
            Advanced Clutch
          • Alignment Tool Included
            Yes
          • Clutch Disc Diameter
            224 mm
          • Clutch Disc Diameter
            8.80 in.
          • Disc Material
            Ceramic
          • Flywheel Included
            Yes
          • Flywheel Series
            Prolite
          • Input Shaft Diameter
            1.0 in.
          • Input Spline Quantity
            24
          • Pressure Plate Series
            Heavy Duty
          • Product Weight
            23.9 lbs.
          • Prop 65 - Required to list in California with Warning
            Yes
          • Prop 65 - Short Label
            WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
          • Release Bearing Included
            Yes
          • Torque Capacity
            349 ft/lbs.
          • Torque Capacity Percentage Over Stock
            107%
        Fitment
        Make Model Submodel Year
        Scion FR-S Base 2013
        Scion FR-S Base 2014
        Scion FR-S Base 2015
        Scion FR-S Base 2016
        Subaru BRZ Aozora Edition 2015
        Subaru BRZ Base 2013
        Subaru BRZ Base 2014
        Subaru BRZ Base 2015
        Subaru BRZ Base 2016
        Subaru BRZ Base 2017
        Subaru BRZ Base 2018
        Subaru BRZ Base 2019
        Subaru BRZ Base 2020
        Subaru BRZ Limited 2013
        Subaru BRZ Limited 2014
        Subaru BRZ Limited 2015
        Subaru BRZ Limited 2016
        Subaru BRZ Limited 2017
        Subaru BRZ Limited 2018
        Subaru BRZ Limited 2019
        Subaru BRZ Limited 2020
        Subaru BRZ Premium 2013
        Subaru BRZ Premium 2014
        Subaru BRZ Premium 2015
        Subaru BRZ Premium 2016
        Subaru BRZ Premium 2017
        Subaru BRZ Premium 2018
        Subaru BRZ Premium 2019
        Subaru BRZ Series.Blue 2015
        Subaru BRZ Series.Gray 2019
        Subaru BRZ Series.HyperBlue 2016
        Subaru BRZ Series.Yellow 2017
        Subaru BRZ Sport-tech 2013
        Subaru BRZ Sport-tech 2014
        Subaru BRZ Sport-tech 2015
        Subaru BRZ Sport-tech 2016
        Subaru BRZ Sport-tech 2017
        Subaru BRZ Sport-tech 2018
        Subaru BRZ Sport-tech RS 2018
        Subaru BRZ Sport-tech RS 2019
        Subaru BRZ Sport-tech RS 2020
        Subaru BRZ TS 2018
        Subaru BRZ TS 2020
        Toyota 86 Base 2017
        Toyota 86 Base 2018
        Toyota 86 Base 2019
        Toyota 86 Base 2020
        Toyota 86 GT 2018
        Toyota 86 GT 2019
        Toyota 86 GT 2020
        Toyota 86 Hakone Edition 2020
        Toyota 86 Special Edition 2017
        Toyota 86 TRD Special Edition 2019
