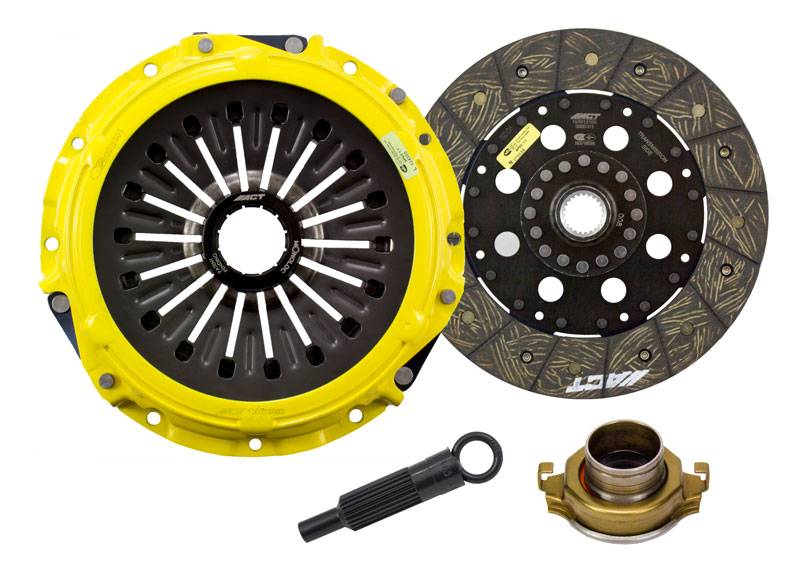

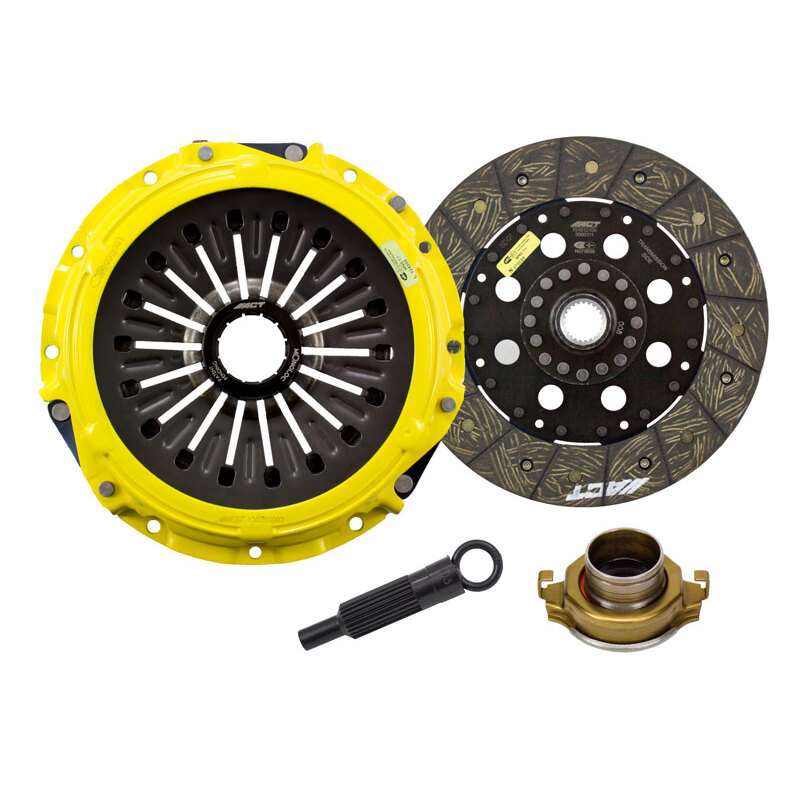

        Transmission Clutch Kit - ME3-HDSD

        Part Number:BHXS-ME3-HDSD
        Advanced Clutch
        ME3-HDSD kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT Performance street rigid-hub discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. The chrome-moly hub is heat-treated for strength and durability. Rivet design and materials are carefully selected for maximum strength. These discs are the minimum weight street disc for faster shifts. ACT's Street rigid-hub discs provide race-proven performance with street manageability. Monoloc is a one-piece, direct replacement or upgrade to the standard, two-piece wedge collar and wire ring featured in pull-type clutches. The spring tension of the segmented retaining ring is carefully calculated and tested for optimal performance. It provides uniform loading on the bearing and pressure plate to assure proper alignment, regardless of driver influence or vehicle modifications. Monoloc's hardened chrome-moly steel construction will provide years of service.
        • "Excellence in Performance", backed by the best one-year warranty in the industry!
        Retail price
        • $1,059.00
        Overview
        ME3-HDSD kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT Performance street rigid-hub discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. The chrome-moly hub is heat-treated for strength and durability. Rivet design and materials are carefully selected for maximum strength. These discs are the minimum weight street disc for faster shifts. ACT's Street rigid-hub discs provide race-proven performance with street manageability. Monoloc is a one-piece, direct replacement or upgrade to the standard, two-piece wedge collar and wire ring featured in pull-type clutches. The spring tension of the segmented retaining ring is carefully calculated and tested for optimal performance. It provides uniform loading on the bearing and pressure plate to assure proper alignment, regardless of driver influence or vehicle modifications. Monoloc's hardened chrome-moly steel construction will provide years of service.
        • "Excellence in Performance", backed by the best one-year warranty in the industry!
        Features
          • SKU
            BHXS-ME3-HDSD
          • Brand
            Advanced Clutch
          • Alignment Tool Included
            Yes
          • Clutch Disc Diameter
            240 mm
          • Clutch Disc Diameter
            9.40 in.
          • Disc Material
            Organic
          • Input Shaft Diameter
            1.0 in.
          • Input Spline Quantity
            23
          • Pressure Plate Series
            Heavy Duty
          • Product Weight
            15.5 lbs.
          • Prop 65 - Required to list in California with Warning
            Yes
          • Prop 65 - Short Label
            WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
          • Release Bearing Included
            Yes
          • Torque Capacity
            530 ft/lbs.
          • Torque Capacity Percentage Over Stock
            45%
        Fitment
        Make Model Submodel Year
        Mitsubishi Lancer Evolution 2014
        Mitsubishi Lancer Evolution Final Edition 2015
        Mitsubishi Lancer Evolution GSR 2008
        Mitsubishi Lancer Evolution GSR 2009
        Mitsubishi Lancer Evolution GSR 2010
        Mitsubishi Lancer Evolution GSR 2011
        Mitsubishi Lancer Evolution GSR 2012
        Mitsubishi Lancer Evolution GSR 2013
        Mitsubishi Lancer Evolution GSR 2014
        Mitsubishi Lancer Evolution GSR 2015
        Mitsubishi Lancer Evolution RS 2009
