        Transmission Clutch Kit - HC6-XTR4

        Part Number:BHXS-HC6-XTR4
        Advanced Clutch

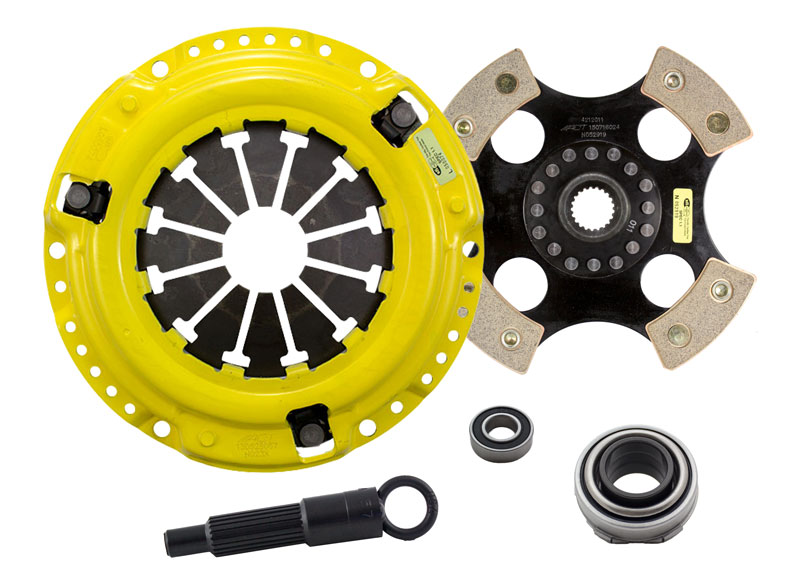

        HC6-XTR4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.
        • "Excellence in Performance", backed by the best one-year warranty in the industry!
        Retail price
        • $621.00
        Overview
        HC6-XTR4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.
        • "Excellence in Performance", backed by the best one-year warranty in the industry!
        Features
          • SKU
            BHXS-HC6-XTR4
          • Brand
            Advanced Clutch
          • Alignment Tool Included
            Yes
          • Clutch Disc Diameter
            212 mm
          • Clutch Disc Diameter
            8.30 in.
          • Disc Material
            Ceramic
          • Fitment Note
            Must be Used with 90-01 SOHC Flywheel.
          • Input Shaft Diameter
            0.875 in.
          • Input Spline Quantity
            21
          • Pressure Plate Series
            Xtreme
          • Product Weight
            9.8 lbs.
          • Prop 65 - Required to list in California with Warning
            Yes
          • Prop 65 - Short Label
            WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
          • Release Bearing Included
            Yes
          • Torque Capacity
            380 ft/lbs.
          • Torque Capacity Percentage Over Stock
            148%
        Fitment
        Make Model Submodel Year
        Honda CRX DX 1988
        Honda CRX HF 1988
        Honda CRX Si 1988
        Honda Civic Base 1988
        Honda Civic DX 1988
        Honda Civic LX 1988
        Honda Civic Wagovan 1988
