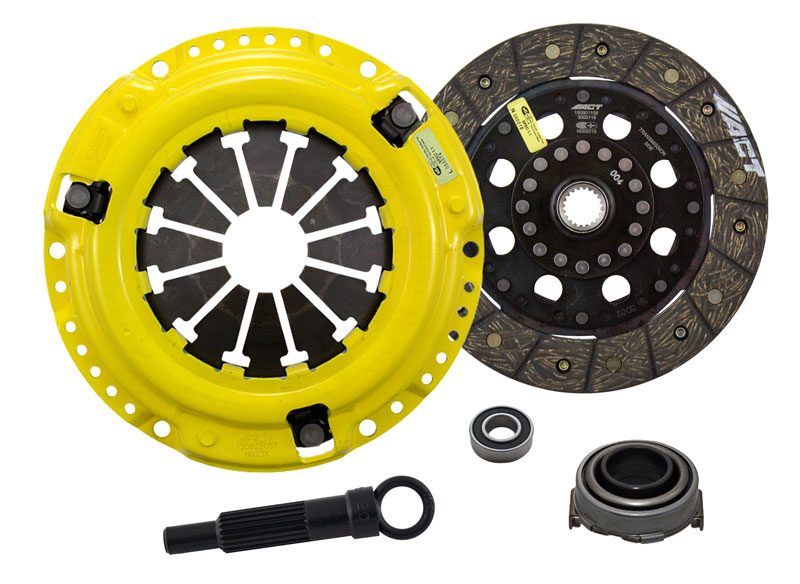

        Transmission Clutch Kit - HC5-XTSD

        Part Number:BHXS-HC5-XTSD
        Advanced Clutch
        HC5-XTSD kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. The ACT Performance street rigid-hub discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. The chrome-moly hub is heat-treated for strength and durability. Rivet design and materials are carefully selected for maximum strength. These discs are the minimum weight street disc for faster shifts. ACT's Street rigid-hub discs provide race-proven performance with street manageability.
        • "Excellence in Performance", backed by the best one-year warranty in the industry!
        Retail price
        • $648.00
        Overview
        HC5-XTSD kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. The ACT Performance street rigid-hub discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. The chrome-moly hub is heat-treated for strength and durability. Rivet design and materials are carefully selected for maximum strength. These discs are the minimum weight street disc for faster shifts. ACT's Street rigid-hub discs provide race-proven performance with street manageability.
        • "Excellence in Performance", backed by the best one-year warranty in the industry!
        Features
          • SKU
            BHXS-HC5-XTSD
          • Brand
            Advanced Clutch
          • Alignment Tool Included
            Yes
          • Clutch Disc Diameter
            212 mm
          • Clutch Disc Diameter
            8.30 in.
          • Disc Material
            Organic
          • Input Shaft Diameter
            0.875 in.
          • Input Spline Quantity
            20
          • Pressure Plate Series
            Xtreme
          • Product Weight
            10.5 lbs.
          • Prop 65 - Required to list in California with Warning
            Yes
          • Prop 65 - Short Label
            WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
          • Release Bearing Included
            Yes
          • Torque Capacity
            295 ft/lbs.
          • Torque Capacity Percentage Over Stock
            82%
        Fitment
        Make Model Submodel Year
        Acura EL Base 1997
        Acura EL Base 1998
        Acura EL Base 1999
        Acura EL Base 2000
        Acura EL Base 2001
        Acura EL Base 2002
        Acura EL Base 2003
        Acura EL Base 2004
        Acura EL Base 2005
        Honda Civic CX 1992
        Honda Civic CX 1993
        Honda Civic CX 1994
        Honda Civic CX 1995
        Honda Civic CX 1996
        Honda Civic CX 1997
        Honda Civic CX 1998
        Honda Civic CX 1999
        Honda Civic CX 2000
        Honda Civic DX 1992
        Honda Civic DX 1993
        Honda Civic DX 1994
        Honda Civic DX 1995
        Honda Civic DX 1996
        Honda Civic DX 1997
        Honda Civic DX 1998
        Honda Civic DX 1999
        Honda Civic DX 2000
        Honda Civic DX 2001
        Honda Civic DX 2002
        Honda Civic DX 2003
        Honda Civic DX 2004
        Honda Civic DX 2005
        Honda Civic EX 1992
        Honda Civic EX 1993
        Honda Civic EX 1994
        Honda Civic EX 1995
        Honda Civic EX 1996
        Honda Civic EX 1997
        Honda Civic EX 1998
        Honda Civic EX 1999
        Honda Civic EX 2000
        Honda Civic EX 2001
        Honda Civic EX 2002
        Honda Civic EX 2003
        Honda Civic EX 2004
        Honda Civic EX 2005
        Honda Civic EX Special Edition 2005
        Honda Civic EX-R 1997
        Honda Civic EX-R 1998
        Honda Civic EX-R 1999
        Honda Civic EX-R 2000
        Honda Civic HX 1996
        Honda Civic HX 1997
        Honda Civic HX 1998
        Honda Civic HX 1999
        Honda Civic HX 2000
        Honda Civic HX 2001
        Honda Civic HX 2002
        Honda Civic HX 2003
        Honda Civic HX 2004
        Honda Civic HX 2005
        Honda Civic LX 1992
        Honda Civic LX 1993
        Honda Civic LX 1994
        Honda Civic LX 1995
        Honda Civic LX 1996
        Honda Civic LX 1997
        Honda Civic LX 1998
        Honda Civic LX 1999
        Honda Civic LX 2000
        Honda Civic LX 2001
        Honda Civic LX 2002
        Honda Civic LX 2003
        Honda Civic LX 2004
        Honda Civic LX 2005
        Honda Civic LX Special Edition 2005
        Honda Civic Reverb 2005
        Honda Civic Si 1992
        Honda Civic Si 1993
        Honda Civic Si 1994
        Honda Civic Si 1995
        Honda Civic Si 1996
        Honda Civic Si 1997
        Honda Civic Si 1998
        Honda Civic Si 2002
        Honda Civic Si 2003
        Honda Civic Si 2004
        Honda Civic Si 2005
        Honda Civic VX 1992
        Honda Civic VX 1993
        Honda Civic VX 1994
        Honda Civic VX 1995
        Honda Civic Value Package 2004
        Honda Civic Value Package 2005
        Honda Civic del Sol S 1993
        Honda Civic del Sol S 1994
        Honda Civic del Sol S 1995
        Honda Civic del Sol S 1996
        Honda Civic del Sol S 1997
        Honda Civic del Sol Si 1993
        Honda Civic del Sol Si 1994
        Honda Civic del Sol Si 1995
        Honda Civic del Sol Si 1996
        Honda Civic del Sol Si 1997
