        Transmission Clutch Kit - GM2-HDR6

        Part Number:BHXS-GM2-HDR6
        Advanced Clutch

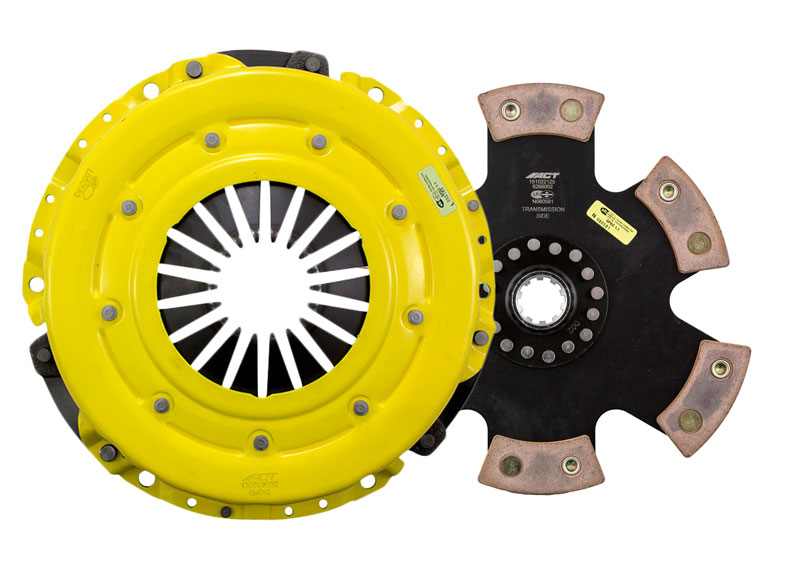

        GM2-HDR6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.
        • "Excellence in Performance", backed by the best one-year warranty in the industry!
        Retail price
        • $552.00
        Overview
        GM2-HDR6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.
        • "Excellence in Performance", backed by the best one-year warranty in the industry!
        Features
          • SKU
            BHXS-GM2-HDR6
          • Brand
            Advanced Clutch
          • Clutch Disc Diameter
            10.5 in.
          • Clutch Disc Diameter
            266 mm
          • Disc Material
            Ceramic
          • Input Shaft Diameter
            1.125 in.
          • Input Spline Quantity
            10
          • Pressure Plate Series
            Heavy Duty
          • Product Weight
            19.3 lbs.
          • Prop 65 - Required to list in California with Warning
            Yes
          • Prop 65 - Short Label
            WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
          • Torque Capacity
            805 ft/lbs.
          • Torque Capacity Percentage Over Stock
            69%
        Fitment
        Make Model Submodel Year
        American Motors AMX Base 1968
        American Motors AMX Base 1968
        American Motors AMX Base 1969
        American Motors AMX Base 1969
        American Motors AMX Base 1970
        American Motors AMX Base 1970
        American Motors AMX Base 1970
        American Motors AMX Base 1970
        American Motors Ambassador Base 1963
        American Motors Ambassador 400 1962
        American Motors Ambassador 880 1963
        American Motors Ambassador 880 1965
        American Motors Ambassador 880 1966
        American Motors Ambassador 990 1963
        American Motors Ambassador 990 1964
        American Motors Ambassador 990 1966
        American Motors Ambassador Custom 1958
        American Motors Ambassador Custom 1959
        American Motors Ambassador Custom 1960
        American Motors Ambassador Custom 1961
        American Motors Ambassador Custom 1962
        American Motors Ambassador Custom 400 1961
        American Motors Ambassador Deluxe 1959
        American Motors Ambassador Deluxe 1960
        American Motors Ambassador Deluxe 1961
        American Motors Ambassador Deluxe 1962
        American Motors Ambassador Super 1958
        American Motors Ambassador Super 1959
        American Motors Ambassador Super 1960
        American Motors Ambassador Super 1961
        American Motors Classic 550 1965
        American Motors Classic 550 1966
        American Motors Classic 660 1965
        American Motors Classic 770 1965
        American Motors Classic 770 1966
        American Motors Hornet Base 1971
        American Motors Hornet Base 1971
        American Motors Hornet SC/360 1971
        American Motors Hornet SC/360 1971
        American Motors Hornet SST 1971
        American Motors Hornet SST 1971
        American Motors Hornet SST 1972
        American Motors Hornet SST 1972
        American Motors Hornet Sportabout 1971
        American Motors Hornet Sportabout 1972
        American Motors Hornet Sportabout 1972
        American Motors Javelin Base 1969
        American Motors Javelin Base 1970
        American Motors Javelin Base 1970
        American Motors Javelin SST 1969
        American Motors Javelin SST 1970
        American Motors Javelin SST 1970
        American Motors Javelin SST Mark Donohue 1970
        American Motors Javelin SST Trans Am 1970
        American Motors Marlin Base 1965
        American Motors Marlin Base 1966
        American Motors Marlin Base 1967
        American Motors Rebel 550 1967
        American Motors Rebel 550 1968
        American Motors Rebel 770 1967
        American Motors Rebel 770 1967
        American Motors Rebel 770 1968
        American Motors Rebel Base 1969
        American Motors Rebel Base 1970
        American Motors Rebel SST 1967
        American Motors Rebel SST 1967
        American Motors Rebel SST 1968
        American Motors Rebel SST 1969
        American Motors Rebel SST 1969
        American Motors Rebel SST 1970
        American Motors Rebel The Machine 1970
        American Motors Rebel The Machine 1970
        Read More
