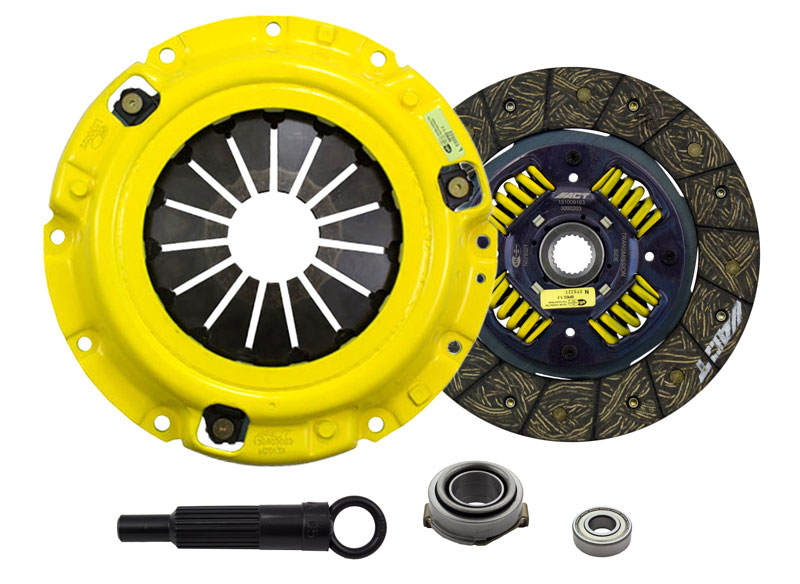

        Transmission Clutch Kit - FC2-XTSS

        Part Number:BHXS-FC2-XTSS
        Advanced Clutch
        FC2-XTSS kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Performance street discs are the most popular disc purchased. They feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates. Quiet operation with increased strength and reliability.
        • "Excellence in Performance", backed by the best one-year warranty in the industry!
        Retail price
        • $652.36
        Overview
        FC2-XTSS kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Performance street discs are the most popular disc purchased. They feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates. Quiet operation with increased strength and reliability.
        • "Excellence in Performance", backed by the best one-year warranty in the industry!
        Features
          • SKU
            BHXS-FC2-XTSS
          • Brand
            Advanced Clutch
          • Alignment Tool Included
            Yes
          • Clutch Disc Diameter
            224 mm
          • Clutch Disc Diameter
            8.80 in.
          • Disc Material
            Organic
          • Input Shaft Diameter
            0.9375 in.
          • Input Spline Quantity
            22
          • Pressure Plate Series
            Xtreme
          • Product Weight
            14.6 lbs.
          • Prop 65 - Required to list in California with Warning
            Yes
          • Prop 65 - Short Label
            WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
          • Release Bearing Included
            Yes
          • Torque Capacity
            350 ft/lbs.
          • Torque Capacity Percentage Over Stock
            70%
        Fitment
        Make Model Submodel Year
        Ford Ranger Base 1983
        Ford Ranger S 1984
        Ford Ranger XL 1983
        Ford Ranger XL 1984
        Ford Ranger XLS 1983
        Ford Ranger XLS 1984
        Ford Ranger XLT 1983
        Ford Ranger XLT 1984
