        Transmission Clutch Kit - AR1-XTSS

        Part Number:BHXS-AR1-XTSS
        Advanced Clutch

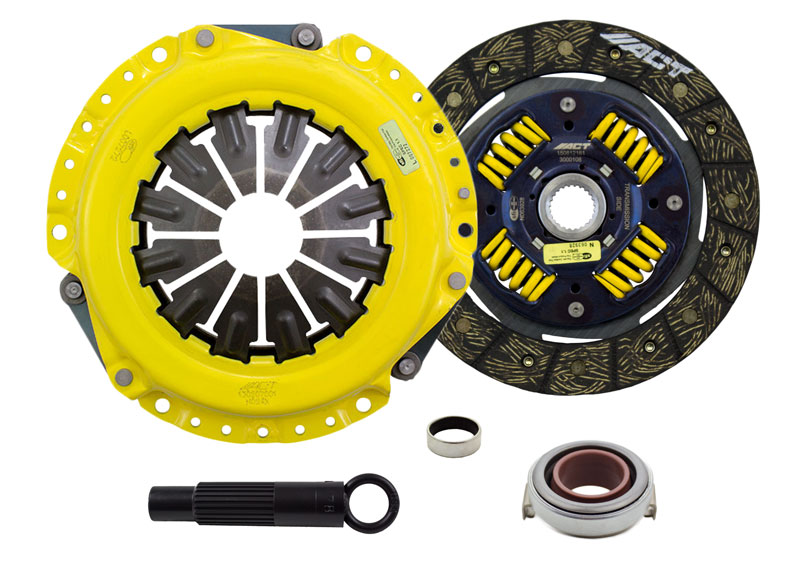

        AR1-XTSS kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Performance street discs are the most popular disc purchased. They feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates. Quiet operation with increased strength and reliability.
        • "Excellence in Performance", backed by the best one-year warranty in the industry!
        Retail price
        • $701.00
        Overview
        AR1-XTSS kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Performance street discs are the most popular disc purchased. They feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates. Quiet operation with increased strength and reliability.
        • "Excellence in Performance", backed by the best one-year warranty in the industry!
        Features
          • SKU
            BHXS-AR1-XTSS
          • Brand
            Advanced Clutch
          • Alignment Tool Included
            Yes
          • Clutch Disc Diameter
            214 mm
          • Clutch Disc Diameter
            8.40 in.
          • Disc Material
            Organic
          • Input Shaft Diameter
            1.03125 in.
          • Input Spline Quantity
            24
          • Pilot Bushing Included
            Yes
          • Pressure Plate Series
            Xtreme
          • Product Weight
            11.1 lbs.
          • Prop 65 - Required to list in California with Warning
            Yes
          • Prop 65 - Short Label
            WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
          • Release Bearing Included
            Yes
          • Torque Capacity
            340 ft/lbs.
          • Torque Capacity Percentage Over Stock
            78%
        Fitment
        Make Model Submodel Year
        Acura RSX Base 2002
        Acura RSX Base 2003
        Acura RSX Base 2004
        Acura RSX Base 2005
        Acura RSX Base 2006
        Acura RSX Type-S 2002
        Acura RSX Type-S 2003
        Acura RSX Type-S 2004
        Acura RSX Type-S 2005
        Acura RSX Type-S 2006
        Acura TSX Base 2004
        Acura TSX Base 2005
        Acura TSX Base 2006
        Acura TSX Base 2007
        Acura TSX Base 2008
        Honda Civic MUGEN Si 2008
        Honda Civic Si 2002
        Honda Civic Si 2003
        Honda Civic Si 2004
        Honda Civic Si 2005
        Honda Civic Si 2006
        Honda Civic Si 2007
        Honda Civic Si 2008
        Honda Civic Si 2009
        Honda Civic Si 2010
        Honda Civic Si 2011
        Honda Civic SiR 2002
        Honda Civic SiR 2003
        Honda Civic SiR 2004
