        Transmission Clutch Kit - AI2-SPG6

        Part Number:BHXS-AI2-SPG6
        Advanced Clutch

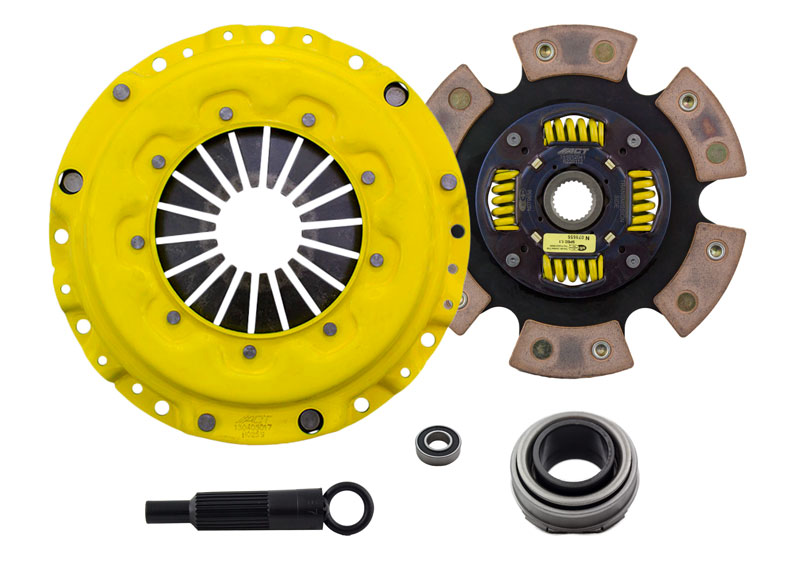

        AI2-SPG6 kit features a Sport pressure plate for a nice upgrade. ACT Sport pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.
        • "Excellence in Performance", backed by the best one-year warranty in the industry!
        Retail price
        • $586.00
        Overview
        AI2-SPG6 kit features a Sport pressure plate for a nice upgrade. ACT Sport pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center construction to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.
        • "Excellence in Performance", backed by the best one-year warranty in the industry!
        Features
          • SKU
            BHXS-AI2-SPG6
          • Brand
            Advanced Clutch
          • Alignment Tool Included
            Yes
          • Clutch Disc Diameter
            220 mm
          • Clutch Disc Diameter
            8.70 in.
          • Disc Material
            Ceramic
          • Input Shaft Diameter
            1.0 in.
          • Input Spline Quantity
            24
          • Pressure Plate Series
            Sport
          • Product Weight
            13.1 lbs.
          • Prop 65 - Required to list in California with Warning
            Yes
          • Prop 65 - Short Label
            WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
          • Release Bearing Included
            Yes
          • Torque Capacity
            280 ft/lbs.
          • Torque Capacity Percentage Over Stock
            52%
        Fitment
        Make Model Submodel Year
        Acura Integra GS 1990
        Acura Integra GS 1991
        Acura Integra LS 1990
        Acura Integra LS 1991
        Acura Integra RS 1990
        Acura Integra RS 1991
