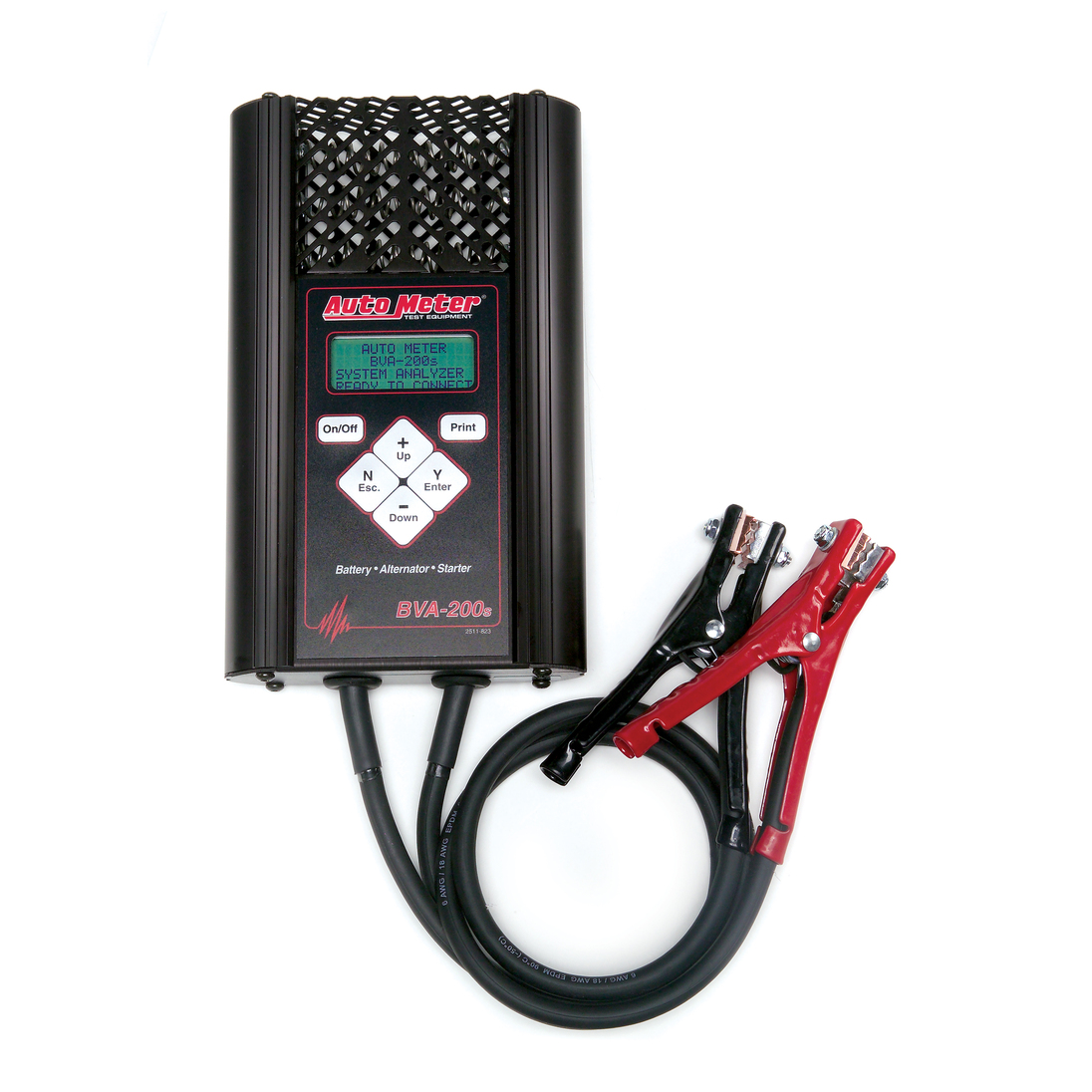

The BVA-200s is a durable hand held battery and electrical system tester with an on-board 120 amp load for heavy use in a professional shop environment. This tester comes with a rugged anodized aluminum housing, rubber hand grip, and 6 gauge leads with heavy duty clamps. Performs a complete electrical system test in 82 seconds!
- Tests 6V and 12V flooded and AGM batteries rated between 100-1600 CCA or 10-265 AH. Tests starting/charging circuits, discharged batteries, and detects bad cells.
- Unlike competitor models, AutoMeter testers only require a single technician to run a full electrical system test due to our on-board 120 amp True Load cell.
- Advanced Digital Pulse Load (DPL) technology
- True-Load - AutoMeter equipment is unique compared with other products on the market
- This Tester Has The Ability To Apply A Known Significant Load (True-Load) Directly Through The Tester Connections Allowing For A More Rapid And Accurate Test Of The Vehicles Battery, Starter, And Charging System By The Operator
- This eliminates the need to apply inconsistent loads, such as headlights, fans, etc.
- Patented Test Process And Algorithm Allowing Operators Of This Product To Rapidly Measure A Batterys Ability To Provide Adequate Cranking Power To Start The Vehicle Without The Need For Time Consuming Manual Electrical System Load Tests.
- This Provides The Ultimate In Accurate High-Speed Battery Testing When Paired With Autometers Advanced Digital Pulse Load Technology Process, Reducing The Margin Of Operator Error And Workload During The Diagnosis.
- which makes our products easier to use and more accurate.
- Automatically stores results of last 150 completed tests for easy review. Wirelessly communicates to optional test results printer via infrared or outputs to PC via AC-12 cable.
- English and Spanish language menus and test results.
- Charging system test results measure alternator current output, voltage regulation, and diode ripple delivering a pass or fail result.
- 16 Gauge, 20" leads with professional grade clamps that are easily field serviceable
- Intuitive menu driven operation, transmitted via backlit LCD screen for ease of use.
