        Braided Hose - 3229

        Part Number:BDHZ-3229
        AutoMeter

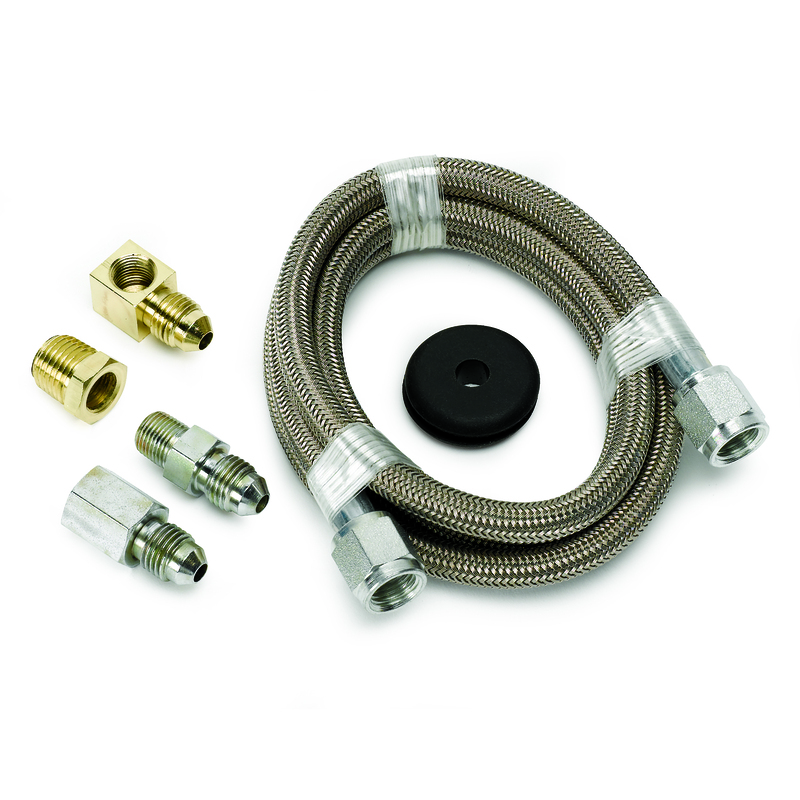

        Includes 4ft. of #4 braided stainless steel line, firewall pass through grommet, 1/8" NPT female right angle to -4AN male fitting, -4AN male to 1/8" NPT male fitting, -4AN male to 1/8" NPT female fitting, 1/8" NPT to 1/4" NPT adapter bushing. Recommended for use with fuel pressure gauges. For use with mechanical pressure gauges and for remote mounting of electric gauge pressure senders.
        • 4ft hose length
        • PTFE lined hose, resistant to most fluids
        • Type 304 Stainless braid
        • Maximum Operating Pressure - 3000 PSI
        • Burst Pressure - 12,000 PSI
        • -65 Degrees F to 450 Degrees F Operating Temperature Range
        • Includes 1/8" NPT male to -4AN female straight, 1/8" FPT Female to -4AN Male straight, 1/8" NPT Female to 1/4" NPT male straight, and -4AN to 1/8" NPT female 90 degree fittings
        Retail price
        • $88.00
        Overview
        Includes 4ft. of #4 braided stainless steel line, firewall pass through grommet, 1/8" NPT female right angle to -4AN male fitting, -4AN male to 1/8" NPT male fitting, -4AN male to 1/8" NPT female fitting, 1/8" NPT to 1/4" NPT adapter bushing. Recommended for use with fuel pressure gauges. For use with mechanical pressure gauges and for remote mounting of electric gauge pressure senders.
        • 4ft hose length
        • PTFE lined hose, resistant to most fluids
        • Type 304 Stainless braid
        • Maximum Operating Pressure - 3000 PSI
        • Burst Pressure - 12,000 PSI
        • -65 Degrees F to 450 Degrees F Operating Temperature Range
        • Includes 1/8" NPT male to -4AN female straight, 1/8" FPT Female to -4AN Male straight, 1/8" NPT Female to 1/4" NPT male straight, and -4AN to 1/8" NPT female 90 degree fittings
        Features
          • SKU
            BDHZ-3229
          • Brand
            AutoMeter
